Polar stereographic projections#

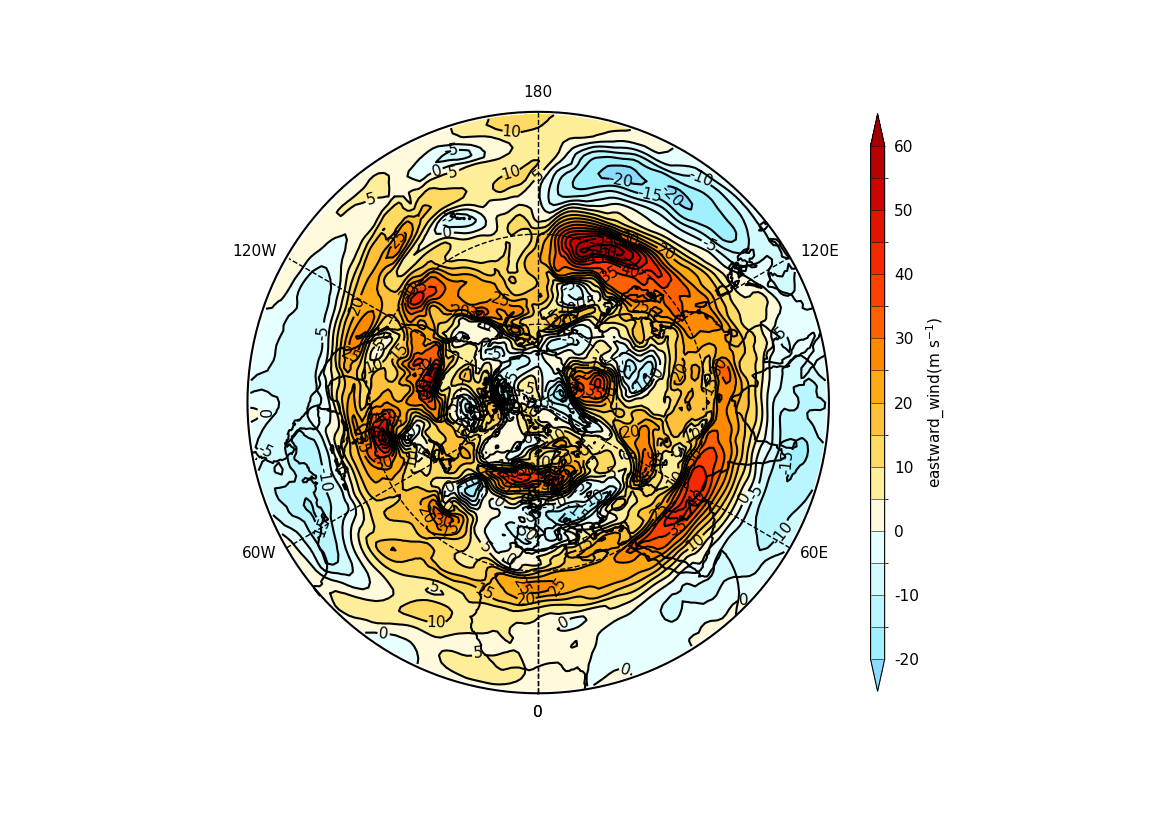

Example 4: North Pole polar stereographic projection contour plot#
Plotting a contour plot in the North Pole polar
stereographic projection#
f = cf.read(f"cfplot_data/ggap.nc")[1]
cfp.mapset(proj="npstere")
cfp.con(f.subspace(pressure=500))

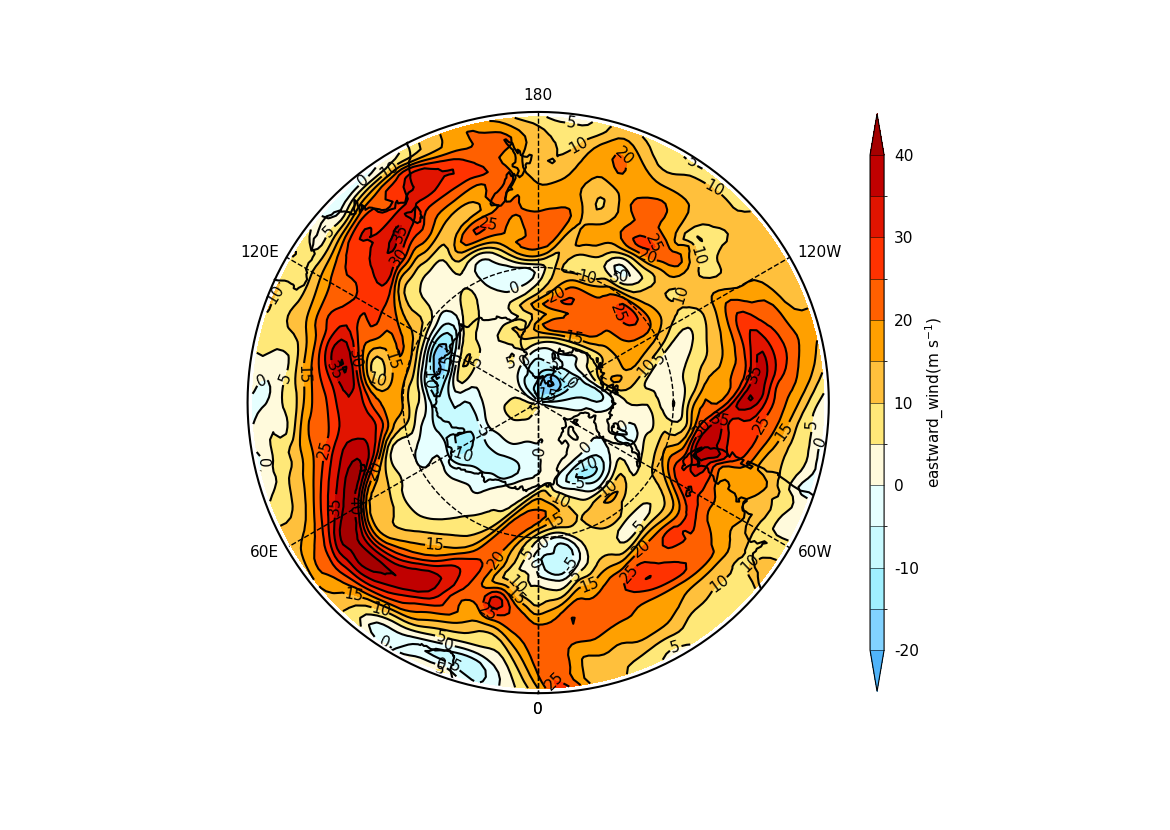

Example 5: South Pole polar projection contour plot with bounding latitude#
Changing the view area of a contour plot in the South Pole
polar stereographic projection by setting the latitude limit to
30 degrees south#
f = cf.read(f"cfplot_data/ggap.nc")[1]
cfp.mapset(proj="spstere", boundinglat=-30, lon_0=180)
cfp.con(f.subspace(pressure=500))
